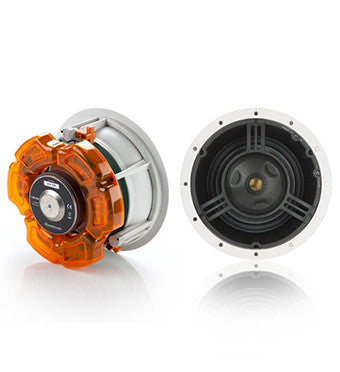

MONITOR AUDIO IN-CEILING CT280-IDC
POA
FREE DELIVERY* T&C'S APPLY WITHIN NEW ZEALAND
RX technologies for ceiling installation. Features an 8-inch C-CAM® bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST® inverted midrange driver and a 1-inch C-CAM gold dome tweeter. True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localization. Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3dB /0dB / -3dB) level adjustment, and boundary compensation (on / off) controls.
- Unique IDC dual concentric mid-range/ HF module offering up to 18 degrees of pivot in all directions. Easily directed during post install set-up.
- C-CAM drivers throughout, providing coherent tonal balance and sonic signature across the entire audio frequency spectrum.
- Special Inverted C-CAM RST profile mid-range cone provides improved dispersion pattern.
- True 3-way designs.
- High overall efficiency.
- High frequency level adjustment (+/- 3dB).
- Boundary compensation control.
- Timbre-match with RS-CP in-ceiling/wall and Silver RS hi-fi speakers.
- Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximizing bass response and mid-range clarity.
- Magnetic and easily removable steel grille.
- All models are paint-able to blend with the living environment. Additional scrim material is provided for trouble free painting.
- All models use fire retardant materials specified to UL-94 VO rating.
- All models are splash and humidity proof for installation in shower rooms or pool areas.
- All models feature dust protection covers that are designed to prevent the ingress of dirt or dust into the driver and crossover.
Item |
Value |
|---|---|
| Frequency Response: | 50 Hz - 30 kHz |
| Impedance (Nominal): | 6 ohms |
| Sensitivity (1W@1M): | 90 dB |
| Maximum SPL | 111.6 dBA |
| Power Handling (RMS): | 120 W |
| Recommended Amp Requirements: | 30 - 120 W |
| Drivers Unit Complement | 8” C-CAM® cone bass driver, pivoting IDC module housing: 4” C-CAM RST® inverted mid range driver 1” C-CAM gold dome tweeter |
| Adjustment Controls | HF Level Switch ( +3dB / 0dB / -3dB ) Boundary Compensation Switch |
| Overall Diameter: (including grille) |
285 mm (11 1/4 inch) |
| Overall Depth: (including grille) |
160 mm (6 5/16 inch) |
| Cut Out Diameter: | 247 mm (9 3/4 inch) |
| Mounting Depth: | 156 mm (6 1/8 inch) |
| Fixing Type: | 3 position Tri-Grip® dog leg fixings |
| Construction Material: | Mineral Filled ABS Plastic (UL V0 Fire Retardant, RoHS2 Compliant) |
| Pre-Construction Bracket: | CB8 (Green) |
| Weight: | 3.42kg (7lb 8oz) |
