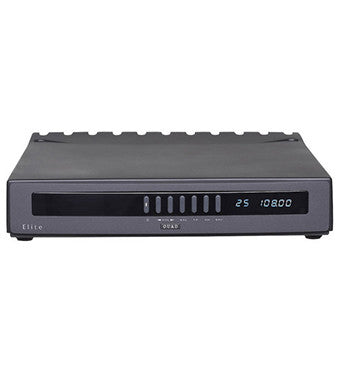

QUAD ELITE FM TUNER
POA
FREE DELIVERY* T&C'S APPLY WITHIN NEW ZEALAND
Designed specifically to cater to the needs of consumers requiring strong signal transmissions and high quality reproduction of music broadcasts, the Elite FM is “the” tuner to do just that. Similar to its 99 series predecessor, the Elite FM tuner can be connected to the rest of the Elite system via our proprietary ‘Quad Link’ bus system to enable complete system control with balanced line audio transmission.
| General Description | FM Turner |
| Tuning Range | 88 – 108MHz |
| Channel Spacing | 50kHz |
| Sensitivity (30dB quieting) | Mono 8dBuV |
| Sensitivity (50dB quieting) | Mono 18dBuV |
| Stereo 18dBuV | |
| Full Limiting | ‹1uV (1.2dBf) |
| Capture Ratio | 1.5dB |
| IF Rejection | ›100dB |
| AM Supression | ›60dB |
| Image Rejection | ›80dB |
| Pilot Tone Supression | ›60dB |
| De-emphasis | 50uS or 75uS |
| Aerial Input | 2 x 75 Ohms unbalanced |
| Main Power On/Off Switch | No |
| Dimensions (H x W x D) | 70 x 321 x 310 mm |
| Weight | 2.8kg |
| Finish | Black |
Please note that shipping can take a few weeks, but we aspire to have it on your doorstep as soon as possible for you to enjoy.
