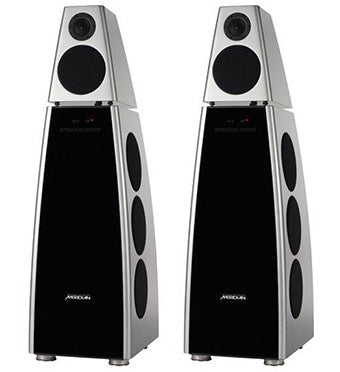

DSP8000 DIGITAL ACTIVE LOUDSPEAKER

• PERFORMANCE

Frequency response in-room 20Hz – >20kHz ±3dB (for inputs at 44.1kHz or 48kHz)

‘31/2’-way crossover system

Linear-phase mid–top crossover; 6th-order Linkwitz-Riley bass–mid crossover

Output >118dB spl @ 1m on music material

Noise less than 15dB spl

Overall distortion typically <0.02% at any frequency or level

• INPUTS

SpeakerLink balanced digital (2ch, RJ45)

S/PDIF unbalanced digital (2ch, phono)

32kHz–96kHz sampling rates

• AUDIO PROCESSING

FIFO memory buffer input for the lowest possible jitter from almost any source

Four 24-bit D/A converters

3x150W amps on bass (1 amp per driver pair)

2x150W amps on midrange and tweeter

All up-sampling and processing is performed by a 150MHz digital signal processor (DSP)

• CONSTRUCTION

Two separate enclosures: mid/top and bass.

Horizontally opposed and profiled bass system introduces minimal vibration to the mid/top enclosure

6 x 200mm long-throw bass drivers

1 x 160mm polypropylene (TPX) mid driver in separate enclosure

1 x 25mm dome tweeter, silver wire, short horn-loaded with protective grille

Black, graphite or silver gloss finish with glass front bass cabinet

Also available in Meridian Select colours

• CONTROL

Rear-panel controls for Power On/Off. Full control via MSR+ and RS232

SpeakerLink carries Comms, serial and balanced digital audio via RJ45/CAT 5

• FRONT DISPLAY

Multi-character display with system lights

• POWER

20W standby, 920W max.
